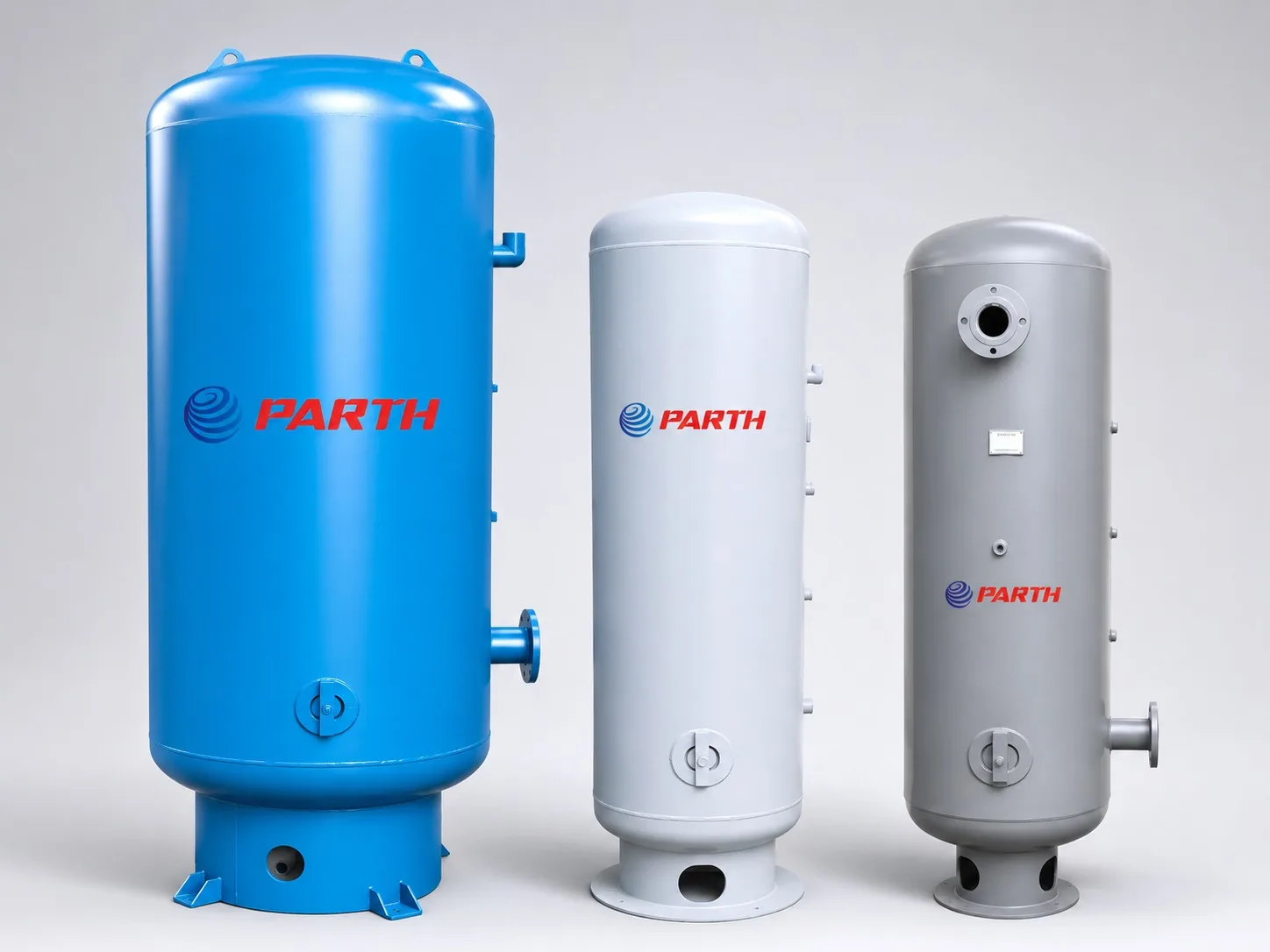

AIR RECEIVERS
Air Receivers:
-
Parth manufactures horizontal & vertical air receivers for Compressed Air Storage.
-
Range of the air receivers are as under.
-
Parth provides Test Certificate / Radiography Certificate of Air Receivers if required.
-
Up to 25,000 Ltr Air Receiver mfg.
-
Up to 70Kg/cm2 (1000 PSIG) available
-
M.S. Plate utilised are as per IS2062
-
Test Parameters
-
Hydrotest Pressure = max working pressure x 1.1 x 1.5
Capacity : From 45 Ltrs. (0.045 M3) to 10000 Ltr. (10 M3)
Max. Working Pressure : From 150 PSIG (10.5kg/cm2g) to 1000 PSIG (70.3 kg/cm2g)
Our Range Of Air Receivers are As Follows: |
||||||
| Air Receiver Volume | Available version | Vertical version | Horizontal Version | |||
| Vertical | Horizontal | Dia(Inch) | Height(Inch) | Dia(Inch) | Lenth(Inch) | |
| 70 | Yes | Yes | 14 | 28 | 14 | 28 |
| 92 | Yes | Yes | 15 | 32 | 15 | 32 |
| 150 | Yes | Yes | 16 | 48 | 16 | 48 |
| 200 | Yes | Yes | 18 | 48 | 18 | 48 |
| 225 | Yes | Yes | 18 | 58 | 18 | 58 |
| 300 | Yes | Yes | 18 | 72 | 18 | 72 |
| 500 | Yes | Yes | 24 | 72 | 24 | 72 |
| 1000 | Yes | Yes | 30 | 84 | – | – |
| 1500 | Yes | Yes | 42 | 69 | – | – |
| 2000 | Yes | Yes | 42 | 90 | – | – |
| 3000 | Yes | Yes | 48 | 102 | – | – |
| 5000 | Yes | Yes | 54 | 132 | – | – |
| 10000 | Yes | Yes | 60 | 216 | – | – |
